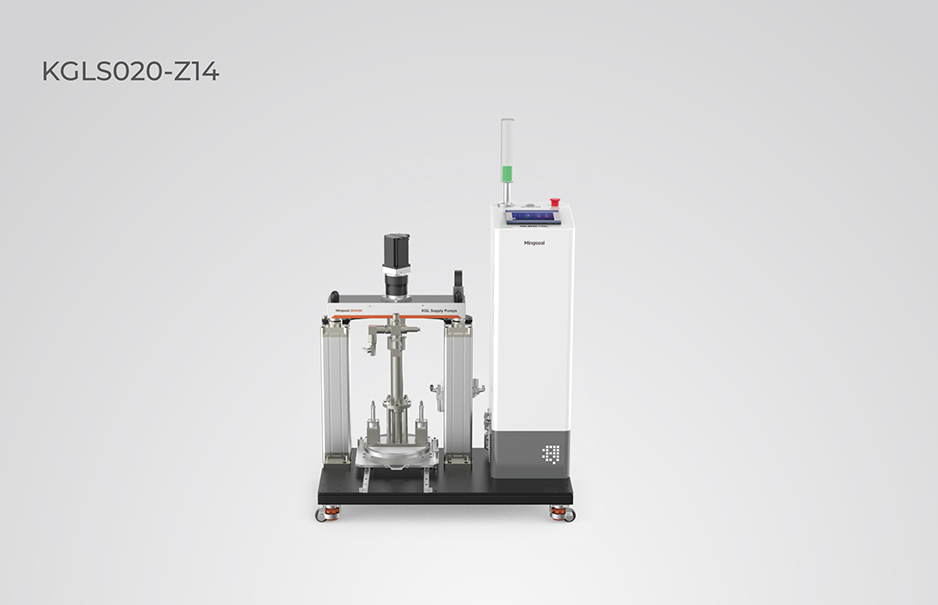

Vacuum Screw Platen PumpKGLS020-Z14

The KGLS020-Z14 can convey raw materials directly from the original drums to the metering system, avoiding the risks associated with secondary packaging or storage. The platen pump can convey medium viscosity to high viscosity adhesives, and the servo drive is adopted to effectively reduce the operating noise and save a lot of operating energy. According to the adhesive characteristics and application scenarios, it is divided into one-component, one-for-backup & one-for-use and two-component types

The vacuum-type platen is adopted to achieve automatic bubble removal after glue replacement.

Return List

Features and Advantages

Feeding & conveying device for precision dispensing equipment to enable uniform, quantitative and continuous output of media.

Pumps of multiple specifications and modular assembly method to be suitable various flow rates.

Improved glue utilization rate, and saving the glue by more than 10% compared with traditional glue supply pumps.

Low-pressure system with less damage to fluid media and receiving parts.

Convenient operation and installation; optional heating function and wear-resistant materials.

Automatic bubble removal to avoid poor dispensing caused by insufficient manual bubble removal.

Application Fields

Electric Drive / Electric Control Shell Sealing
BMS/OBC Heat Dissipation Coating
Central Control Screen Structure Bonding
Lidar Window Bonding

Applicable Fluids

Thermal Glue
Sealant
Various One-Component / Two-Component Structural Glue
Acrylic Acid, Polyurethane, and Silicone and Epoxy Series Type

Technical Specifications

Indexes	Parameters and Performance
Dispensing flow rate	15-252ml/min
Glue output per circle	14ml
Dispensing precision	Within ±5% deviation
Applicable viscosity	0-500000mPas
Max. dispensing pressure	2.5MPa
Feeding method	Screw continuous feeding
Outlet size	G1/2
Dimensions (WDH)	1462950500mm
Weight	140kg
